OVERVIEW

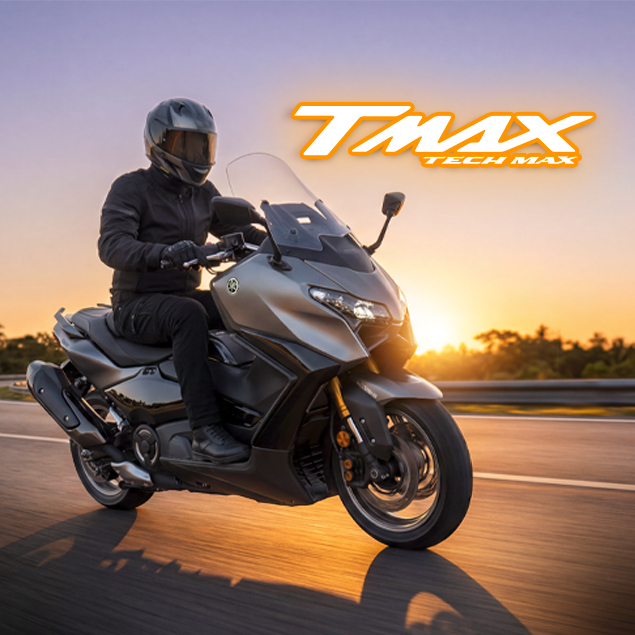

Supported by vast styling and luxurious level of comfort, the TMAX commands a dynamic presence while cruising on the busy city streets or long distance travelling. Equipped in an All-New 562cc engine accompanied by its lightweight chassis for smoother navigation, this sport scooter truly is Luxury in Motion.
FEATURES

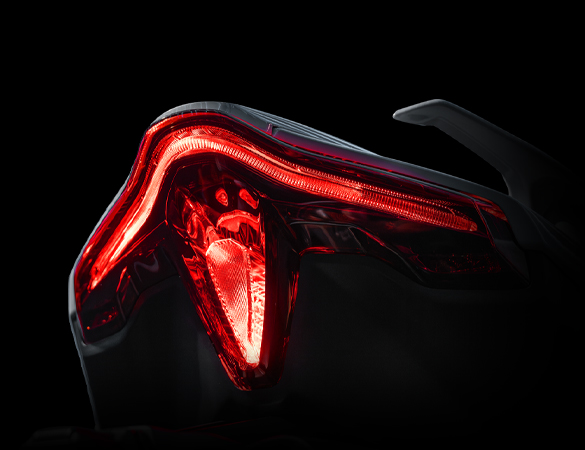

Emergency
Extra safety, when it matters most.

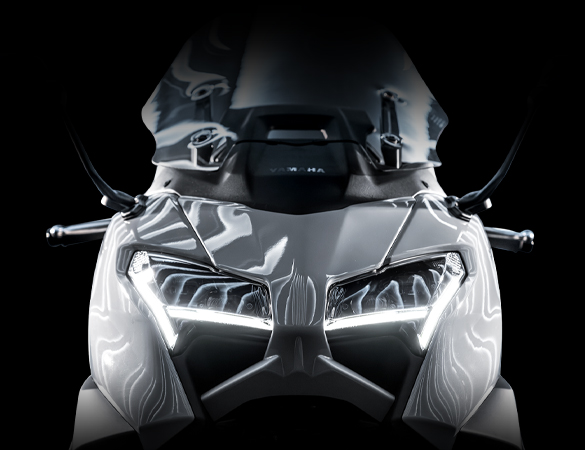

Sleek New Front Fairing
+ T-Shaped Position Lights
Redesigned for sharper, sportier lines, the TMAX now boasts dual-eye headlights and restyled front end that screams performance.

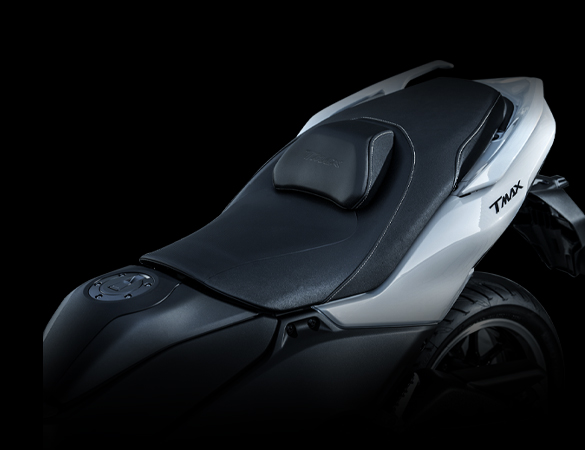

New Textured
Seat Cover
Comfort meets class. A fresh seat design that elevates every ride.

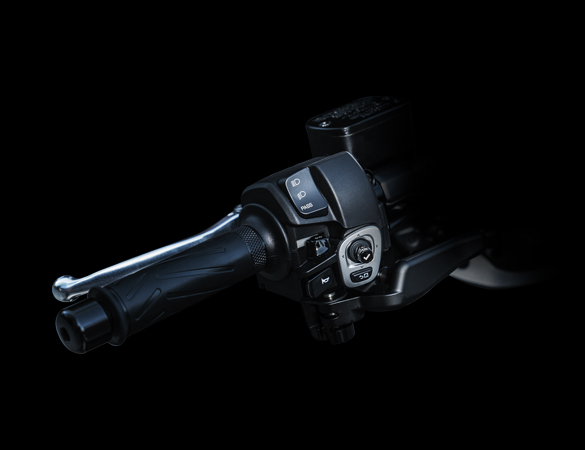

Smart Tech,
Max Control
Cruise control. Traction + Brake Control. Dual D-MODE.
Tyre Pressure
Monitoring System (TPMS)
Real-time tyre data at your fingertips.

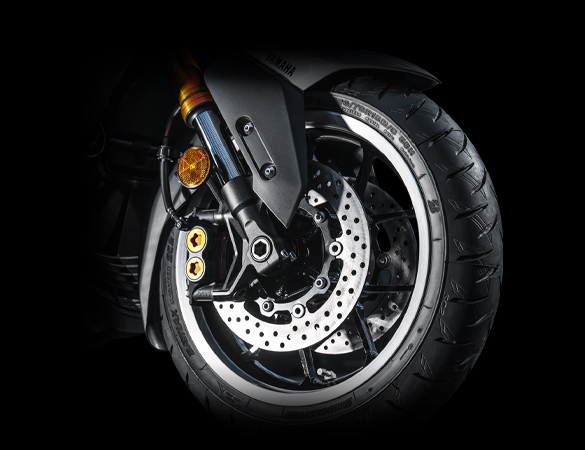

High-Grade Machine
Cut Wheels
Because premium isn’t just about looks, it’s how it rolls.
Specification
Engine
| Type | 4-Stroke, Liquid-cooled, DOHC, 4-Valves, In Line Twin-cylinder | |
| Cylinders | 2 Cylinder | |
| Displacement | 562 cc | |
| Bore x stroke | 70.0 mm x 73.0 mm | |
| Compression ratio | 10.9:1 | |
| Maximum power | 35.0 kW @ 7,500 rpm | |
| Maximum torque | 55.0 Nm @ 5,250 rpm | |
| Lubrication System | Dry Sump | |
| Fuel system | Fuel injection | |
| Ignition system | TCI | |
| Starter system | Electric |
Transmission
| Transmission system | V-Belt Automatic | |
Chasis
| Overall length | 2,195 mm | |
| Overall width | 780 mm | |
| Overall height | 1,585 mm | |
| Seat height | 800 mm | |
| Wheelbase | 1,575 mm | |
| Minimum Ground Clearance | 135 mm | |
| Wet weight | 221 kg | |
| Fuel tank capacity | 15L | |
Brakes
| Front brake | Hydraulic dual disc brake | |
| Rear brake | Hydraulic single disc brake | |
Suspension
| Front Suspension Type | Telescopic forks | |
| Rear Suspension Type | Swingarm | |
Tires
| Front Tyre | 120/70R15M/C 56H | |
| Rear Tyre | 160/60R15M/C 67H | |
